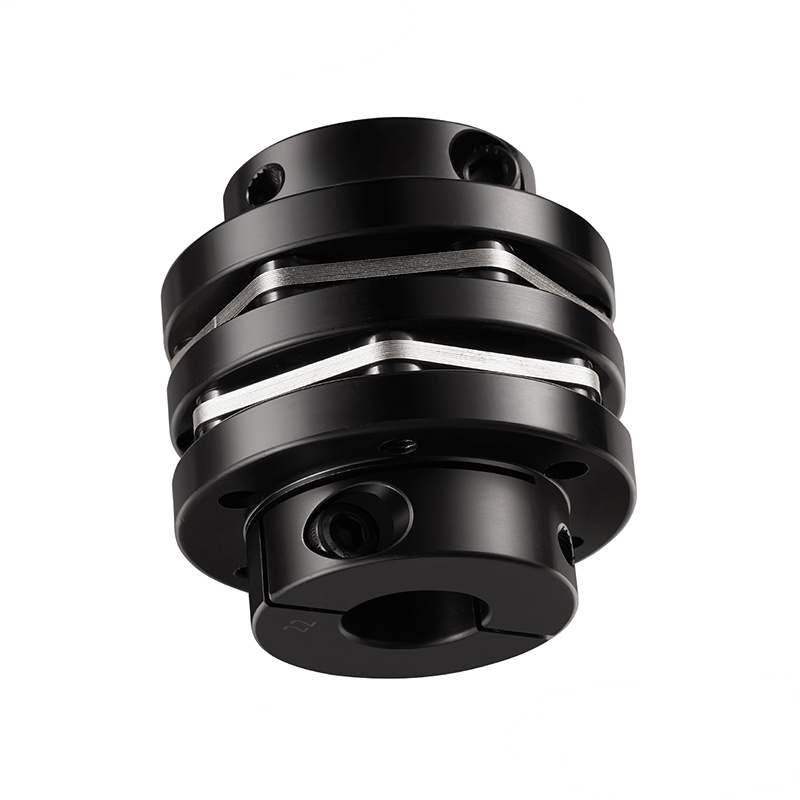

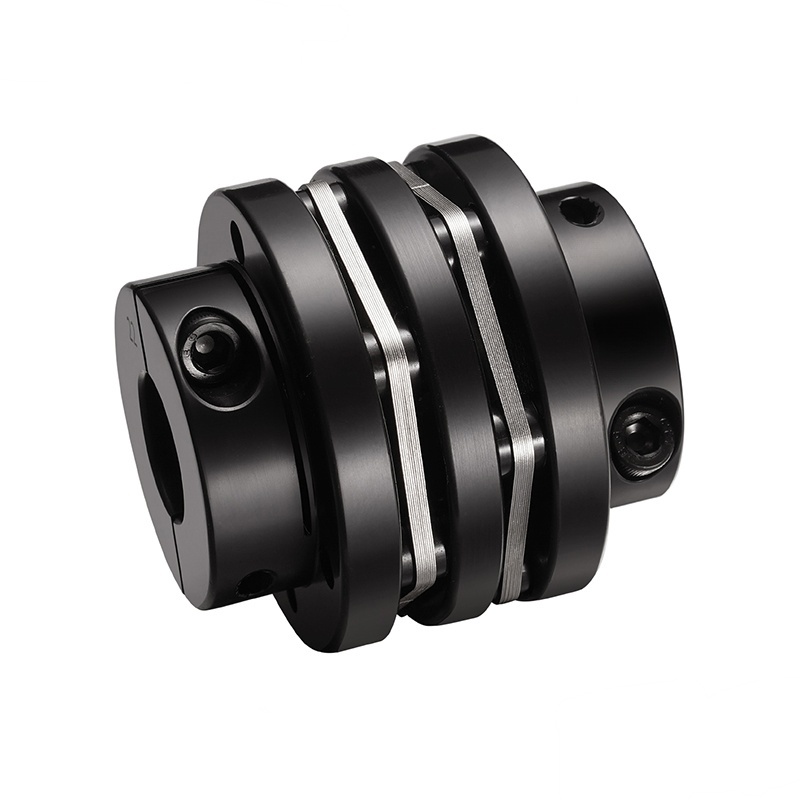

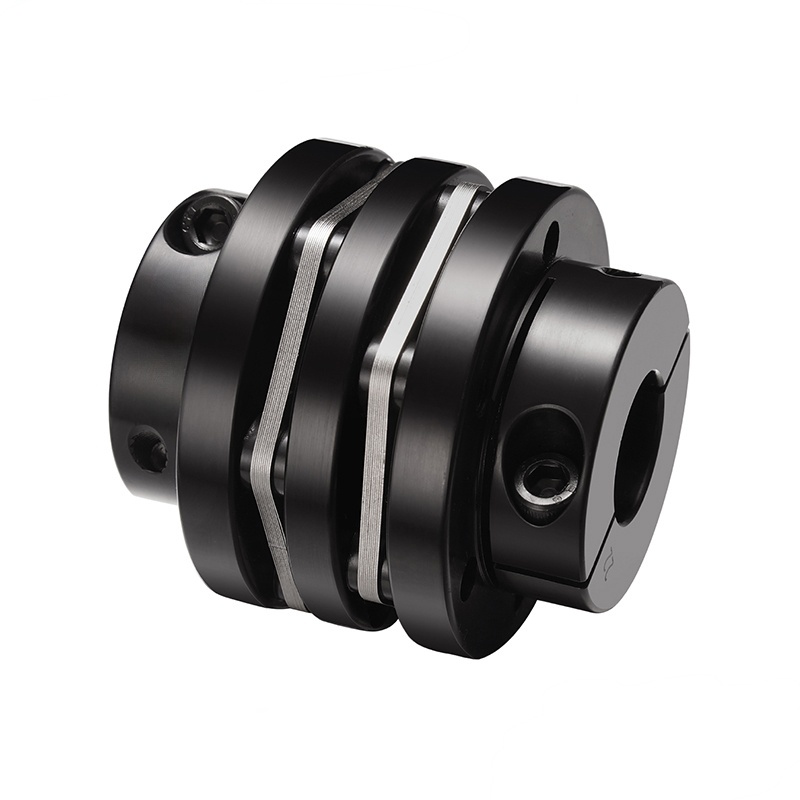

RSK-CPNLT Corrosion-resistant 45# steel Blackening stepped double diaphragm coupling clamp

>The diaphragm is made of 304 stainless steel

>High torque rigidity, can accurately control the rotation of the shaft, can carry out high precision control

>Designed for servo and stepper motors

>With keyway design,large torque transmission

>The gap-free shaft and shaft sleeve connection is suitable for forward and reverse rotation

>The shaft sleeve is made of 45# steel

>Clamping screw tightening method

This 45# steel stepped single diaphragm coupling is made of 45 steel as the main material, with excellent strength and toughness. The half coupling is forged with 45 steel, which is solid and can withstand large torque to ensure stable power transmission.

The stepped structure design realizes the gap-free connection between the shaft and the sleeve, which is easy to install and compact in structure, and can significantly reduce the overall space occupation of the equipment. At the same time, the structure has low inertia, which is particularly suitable for high-speed motion scenes, can reduce energy loss and improve transmission efficiency. ​

The double diaphragm design is a highlight. Through the elastic deformation of the diaphragm, the axial, radial and angular offsets caused by manufacturing and installation errors, load deformation, temperature rise changes, etc. between the driving machine and the driven machine can be efficiently compensated. While accurately transmitting torque, it effectively reduces vibration and noise to ensure the smooth operation of the transmission system. In addition, the coupling does not require lubrication, further reducing maintenance costs. Whether in chemical industry, marine engineering, or food and beverage industries that have special requirements for equipment, this coupling can be a reliable transmission choice. ​
