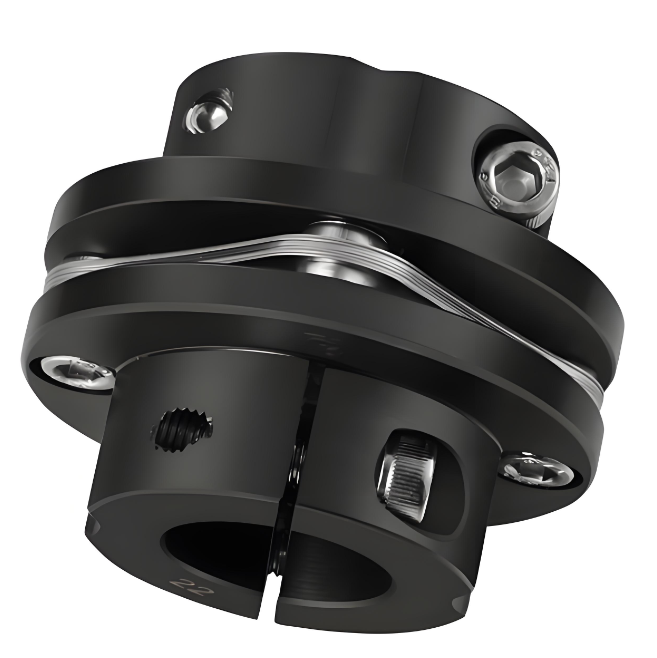

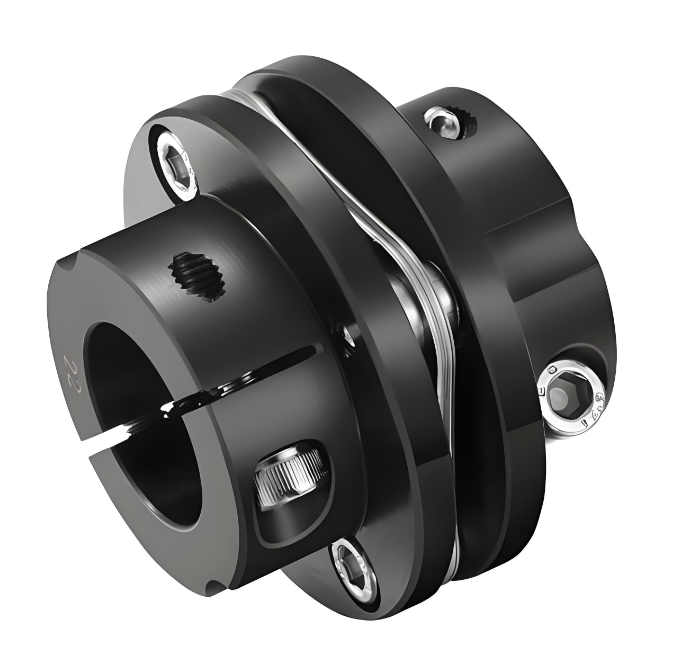

RSK-CPNST 45# steel blackening stepped single diaphragm coupling

>The diaphragm is made of 304 stainless steel

>High torque rigidity, can accuragtely control the rotation of the shaft , can carry out high precision control

>Designed specifically for servo, stepper motor

>With keyway design, large troque transmission

>The gap-free shaft and shaft sleeve connection is suitable for forward and reverse rotation

>The shaft sleeve is  made of 45# steel

>Tightening method of positioning screw

This 45# steel stepped single diaphragm coupling is made of 45 steel as the main material, with excellent strength and toughness. The half coupling is forged with 45 steel, which is solid and can withstand large torque to ensure stable power transmission.

Its structural design is unique. The single diaphragm is made of stainless steel sheet and is staggered with the two half couplings by bolts. This design can effectively compensate for the relative displacement between the two connected shafts by elastic deformation of the diaphragm, covering axial, radial and angular displacement, and has outstanding compensation ability. Compared with the gear coupling, its angular displacement capacity is doubled, the reaction force is small during radial displacement, the flexibility is large, and a certain degree of eccentricity, deflection and axial deviation are allowed, which has good adaptability to shaft misalignment.

In terms of performance, it has many highlights. It has a wide range of torque transmission and is suitable for a variety of working conditions. It can significantly reduce vibration during operation, without noise or wear, and the transmission efficiency is as high as 99.86%, which is particularly outstanding in medium and high-speed high-power transmission scenarios. The working temperature adaptability range is wide, and it can work normally in an environment of -80℃ to +300℃, and can also operate safely under harsh conditions with impact and vibration. In addition, the coupling has a simple structure, light weight, small size, easy installation and disassembly, no need to move the machine (for the type with intermediate shaft), and no lubrication, and low subsequent maintenance costs. In the field of precision mechanical transmission, it can accurately transmit the speed, operate without slip, and provide strong support for the stable operation of the equipment. It can be widely used in many industries such as fans, pumps and valves, mining, metallurgy, papermaking machinery, hydraulic systems, shipbuilding, etc.
