RSK-n-aprex Series nen-nhn TORSIONALLY RIGID ALL-STEEL COUPLINGS wear-free and maintenance-free

Home / Products / DIN Couplings / RSK-n-aprex Series nen-nhn TORSIONALLY RIGID ALL-STEEL COUPLINGS wear-free and maintenance-free

RSK-n-aprex Series nen-nhn TORSIONALLY RIGID ALL-STEEL COUPLINGS wear-free and maintenance-free

Contact Us
  • Specification
  • Describe

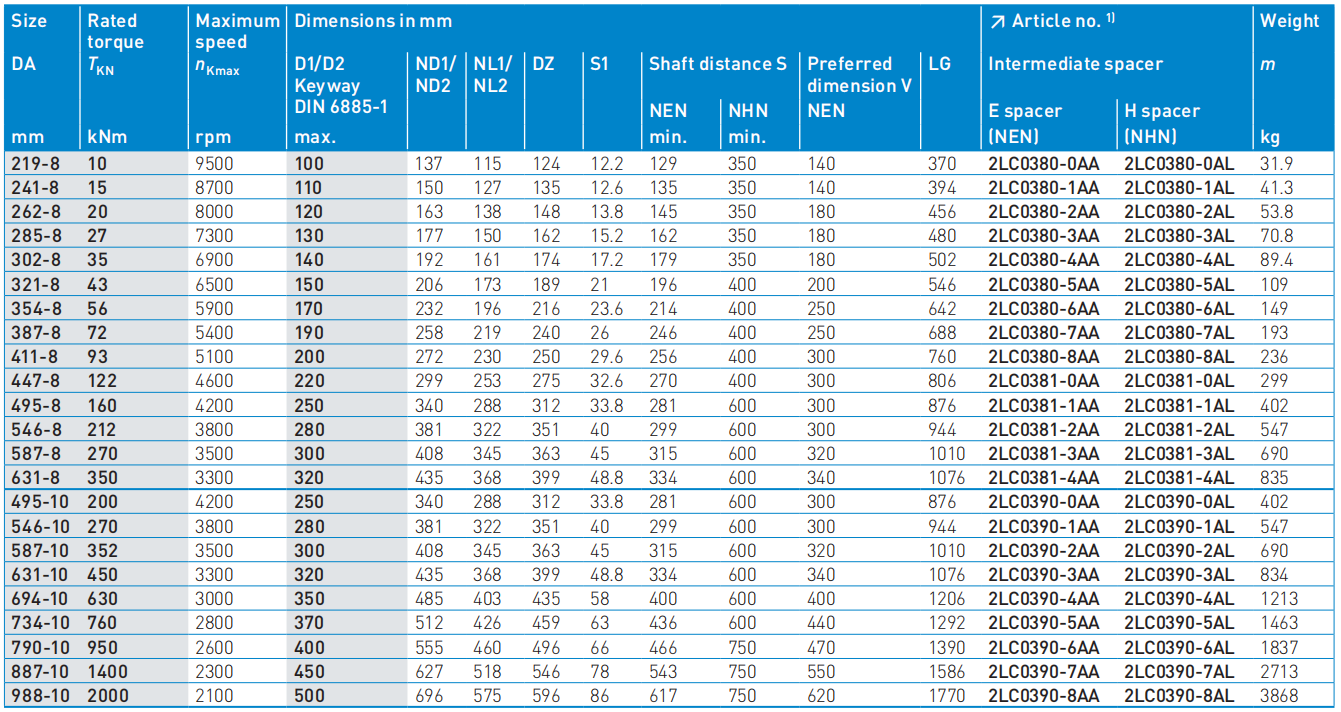

Specification

Benefits

RSK-n-aprex-nen/nhn couplings of the ARN-6/-8/-10 series are outstanding for their application-optimized construction.The NEN, BEB, MCECM, MFEFM series meet the requirement of APl 610.Coupling type in accordance with APl 671is also possible.For speeds of over 1,800 rpm the five part version with pre-assembled intermediate unit is used.A special catching device acts to secure the intermediate spacer in the event of plate breakage. Application of the RSK-n-aprex couplings in potentially explosive atmospheres in accordance with the current ATEX Directive is permitted.

Application

RSK-n-aprex-nen/nhn couplings of the ARN-6/-8/-10 series are used wherever reliable torque transmission is called for, even in cases of often unavoidable shaft misalignment. They are universally applicable over a temperature range of from-50'C (or even as low as -60 'C on request)up to +280°Care torsionally rigid, free of torsional backlash and enable quiet running at a constant angular velocity. They are wear-free and maintenance-free and, if correctly fitted,can be expected to have an unlimited service life.
